Horsepower
175 – 335 HP
FPT Engine
6.7 / 8.7 L
Tank Size
660 – 1,600 gal.
Emissions Standard
Tier 4 B/Final

PATRIOT FAMILY

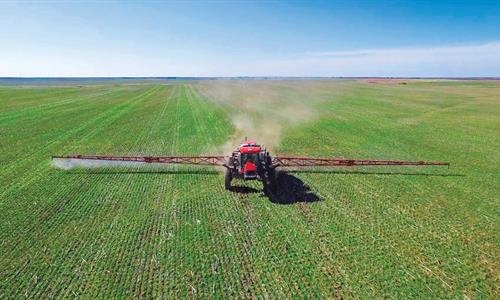

New for 2020: Wider, lighter boom options for Patriot^® 4440 sprayer

New for 2020: Wider, lighter boom options for Patriot<sup>®</sup> 4440 sprayer

Experience efficient application like never before with new boom options for the Patriot 4440 sprayer. Made of aluminum, these factory-installed booms are lightweight, yet durable, and come in 132- and 135-foot options — now the widest booms available on this model.

New AutoBoom^® XRT automatic boom height control adjusts the booms automatically, using a combination of chassis monitoring and sensors to detect changes in terrain, for improved target height accuracy. The radar sensors can be configured to detect the location of the ground or crop canopy, maintain a level spray platform and maximize boom life.

Make the Most of Every Plant's Potential

Application Quality

Patriot sprayers deliver the right rate and droplet size not only across the entire boom, but also the entire field. A stable spray platform delivers product consistently across varied conditions. Skips and overlaps are minimized with automatic boom section control and guidance.
Timeliness

To maximize your crop’s yield potential, product needs to be applied at the right agronomic moment. The cab-forward, rear-engine Patriot sprayer design means even weight distribution across the machine, getting operators into the field earlier while causing less soil compaction and maximizing on tight operating windows.
In-Field Performance

Our application technology, engineering and expertise combine to help you keep your fields clean and plants healthy — all with the goal of maximizing yield potential. With Case IH FTP engines, Patriot sprayers offer proven power and durability to work as long and hard as you do at spraying time.

When It Comes to Chemical Delivery, Make Sure Your Equipment Delivers.

Both growers and commercial applicators know that timeliness and application quality are critical. Most often, you're facing long days and short application windows. That's why you need a sprayer that optimizes your time and provides accuracy in any conditions. Patriot sprayers offer the most advanced spray technology on the market. Agronomically designed with function in mind, Patriot sprayers allow you to do your job quickly but efficiently every time.

Spray when you have to
- The cab-forward, rear-engine design provides more equal weight distribution across the machine.
- Light footprint gets you into fields earlier for more timely application with less soil compaction.
- Optional 360-degree lighting package adds hours to your day.
- Optimal use of efficient horsepower means you can cover more acres faster.
Long hours won't feel so long

The Patriot sprayer’s Surveyor™ cab offers:
- Exceptional space to work in which allows the operators to stretch out their legs.
- Vast amounts of cab glass and a well-thought-out cab design offer unrestricted visibility to the front and sides.
- Superior visibility helps when traveling down the field or maneuvering around obstacles.
- A gun sight on the front hood that helps you line up your pathway.
- A seat-mounted control console moves with the seat for near-effortless operation of sprayer controls.
- The Case IH AFS Pro 700 or Viper 4+ displays can be mounted on the control console or on a separate mounting bar, allowing for line-of-sight visibility of rate control and guidance functions.

Spray better
- AFS AccuGuide™ or RS1 autoguidance helps reduce skips and overlaps.
- AFS AccuTurn automated headland-turning technology provides hands-free, automatic and repeatable turns for increased productivity.
- AutoBoom XRT automatic boom height control functions as a “look ahead” to detect changes in terrain and adjusts the booms accordingly for improved target height accuracy.
- AIM Command FLEX™ advanced spray technology delivers consistent, flexible and accurate application, regardless of speed and terrain.
- Use a single tip for multiple applications.
Maximize your uptime
- Maintenance is simple.
- Routine maintenance items are located on one side of the machine and easily accessed.
- Saves time, so maintenance is less likely to be skipped when things get busy.
- Our booms are designed for maximum strength, unequaled durability and unmatched reliability.
- All Patriot sprayers feature a welded one-piece tubular frame design and simple but durable trailing-link suspension.
- Optional automated rinse feature allows you to start the rinse cycle, either from the service center or in the cab, with the click of a button, helping to reduce fatigue and increase productivity.

Distinctive Appearance, Unmatched Performance

The "cab-forward, rear-engine" configuration gives Case IH Patriot sprayers their distinctive look and their performance edge. This design puts the static weight of the cab and engine over the front and rear axles. The dynamic weight of the product tank is in the center of the machine, so there is more even weight distribution between the axles when the tank is full and the booms are out. Even weight distribution allows for less rutting and soil compaction in any weather condition.

Superior suspension
- The aircraft-style trailing link suspension provides a smooth ride across any field.
- Absorbs both vertical and lateral shock loads in ways no other suspension package can.
- Optional active suspension replaces the front shock absorbers with hydraulic cylinders. The hydrostatic cylinders monitor drive pressure and in the event of low traction the cylinder collapses the suspension spring to bring the front end down to keep traction.
Even weight distribution
- The cab-forward, rear-engine design allows the machine to provide an extremely light footprint, yet maintain powerful performance.
- The even weight distribution allows you to get into the field sooner and on to the next with less rutting and soil compaction.

Heavy-duty frame
- Constructed of welded, one-piece rectangular steel tubing.
- Engineered for durability and long service life.
- The rigid, low-deflection frame not only protects the cab, product tank and power plant from field loads, but also provides a stable attachment point for the sprayer's booms.
Heavy-duty boom construction
- Engineered for toughness and rigidity.
- Large, rectangular tube structure and a truss-style design with fewer but larger support members are the basis for boom strength and durability.
- Independent right and left booms, plus full boom and boom tip breakaway features, are designed to respond to tough field stress loads.

Get Ultimate Spray Control with AIM Command FLEX^®

AIM Command FLEX advanced spray technology precisely controls product flow and spray pressure to optimize application rate, spray coverage and accuracy over a range of speeds and field conditions. This system delivers the ultimate in sprayer control to help you get the most out of every tankful, every hour and every acre.

How AIM Command FLEX works
- Pulse width modulation (PWM) spray technology ensures constant application rate and pressure.
- Working at 10 pulses per second, nozzle valves vary the duty cycle to maintain the correct application rate, even as speed changes.
- The system maintains consistent rate and pressure at speed ranges up to 8:1 with properly sized tips.
Precise, flexible control
- AIM Command FLEX operates 36 separate “virtual” boom sections, delivering greater spray accuracy.
- The ability to control more boom sections helps reduce overapplication that adds costs and potential crop damage.
- To accommodate wheel tracks, fence rows or other field conditions, you can preset spray rates up to 30 percent higher than your target rate on up to eight nozzles.
On-demand drift control
- Preset two spray pressures and toggle between them while spraying.
- For example, set one pressure for desired droplet size. Dial in a second setting at lower pressure for selective drift control in sensitive areas.
- Or operators can set a higher pressure for the second setting to achieve greater canopy penetration when drift is not a concern.

Compensate for turns
- AIM Command FLEX automatically adjust rates across the boom during field curves and turns.
- System prevents overapplication or underapplication caused when opposing ends of the boom travel at different rates during turns.
- Each nozzle adjusts for speed, nozzle position on the boom and the arc or turn radius.
Instant on/off
- With a nozzle valve diagnostic system, AIM Command FLEX gives you peace of mind that you’ll be able to spot malfunctioning nozzles.
- There is no pressure bleed-down or nozzle dribble at turn-off that can lead to overapplication.
Nozzle valve diagnostics
- With a nozzle valve diagnostic system, AIM Command FLEX gives you peace of mind that you’ll be able to spot malfunctioning nozzles.
- The system alerts you immediately if a valve quits working or a wire becomes unplugged.
- In-cab display alerts and LED indicator lights on each nozzle help you identify problem nozzles quickly and easily.

Simple, one-screen operation
- AIM Command FLEX operates through the sprayer’s rate controller — either the AFS Pro 700 or Case IH Viper 4+.
- Monitor and adjust application rate, spray pressure, boom status, tank volume and other operations, all from one display.
- ISO Virtual Terminal (VT) compatible for system flexibility.
Accurate spray mapping
- Export application data in the Shapefile format with the Case IH Viper 4+ display and in the Taskdata format with the AFS Pro 700 display; both data formats can be easily imported into AFS Mapping and Records for further analysis
- Generate as-applied maps and application reports for each field or farm.
- System recognizes internal and external boundaries, along with no-spray zones.
Want greater precision?
- Upgraded AIM Command FLEX achieves the highest spray accuracy and efficiency.
- Individual Nozzle Swath Overlap Control
- Optional upgrade allows on-off control of individual nozzles through the Viper 4+ controller.
- No additional hardware required; simply purchase the upgrade at time of equipment order or delivery.

Designed With You in Mind

When application windows are narrow and every hour in the field counts, operator comfort isn't a luxury it's a necessity. That's why Patriot sprayers are designed to let operators work longer with less fatigue. The distance between cab and engine makes for an exceptionally quiet ride. The curved front windshield offers a wide vista of tinted glass and puts the operator in control. Ergonomically designed, line-of-sight instrumentation positions critical operating functions right up front, leaving the operator free to focus on the work at hand. The pressurized cabs keep the inside air clean and fresh while the automatic temperature control (standard on the Patriot 4440; optional on the Patriot 3240 and 3340) plus sunshades keep the operator cool and comfortable.

Take absolute control

Sprayer control switches are ergonomically placed — attached directly to the operator's seat. The most commonly used controls are placed on the hydrostatic control lever for one handed operation. The cab features:
- Instructional seat
- Optima air-ride seat
- Tilt and telescoping steering column
- A-post gauges and readouts
- AFS Pro 700 or Case IH Viper 4+ touch screen monitor
- Wheel track adjustment (under armrest cover)
- Right-hand control console
- Hydrostatic control lever
- Climate controls
Have a seat
- The Patriot air-ride seat is adjustable for position, ride firmness and lumbar support.
- An exclusive 40-degree, right-hand swivel seat gives you a 180-degree full field of vision (4440 Model).
- The instructional seat can be folded when not in use to provide a convenient workstation with cup holders (4440 Model).
Enjoy full visibility
- Choose the optional single camera selection on your sprayer to easily monitor center-section-mounted spray nozzles from the cab.
- Add two additional cameras for visibility of the boom-mounted nozzles you can’t see otherwise.
- If desired, cameras can be mounted in a variety of locations to monitor traffic during transport, watch your tires while traveling down the field rows or monitor other customer-preferred views.

The Forces in Balance

The Case IH engineers who design Patriot sprayers know you're looking for the perfect balance. You want all the power you'll ever need, and at the same time a sprayer with a long, economical service life. There's no mystery to make that happen, just good solid science. Simply match the engine size and horsepower rating to the machine and its drivetrain, and you're good to go. Case IH FPT diesel engines are the driving force behind every Patriot sprayer, providing optimum field efficiency and maximum horsepower to the ground.

Patriot 4440 sprayer with 8.7L engine
- Features an 8.7L Case IH FPT engine with a base horsepower rating of 335 hp and peak horsepower of 374 hp at 2000 rpm
- Signifies a greater than 12% increase in both base and peak horsepower ratings compared to previous models
- Peak torque increases from 1,020 ft-lbs to 1,143 ft-lbs at 1500 rpm, a greater than 5% improvement.
Patriot 3340, 3240 & 2250 proven 6.7L Engine

These inline power plants provide optimum field efficiency and maximum horsepower to the ground in even the toughest field conditions. Featuring a 6.7L Case IH FPT inline 6-cylinder turbocharged, after-cooled, electronically controlled diesel engine
- The Patriot 3340 engine produces 285 rated hp (309 peak)
- The Patriot 3240 engine produces 250 rated hp (270 peak)
- The Patriot 2250 engine produces 175 rated hp (190 peak)
Hydrostatic drive system
- Features a parallel, cross-flow design using heavy duty variable displacement pumps and drive motors
- If a wheel slip or spin occurs, the traction assist feature provides sufficient oil to opposing wheels to power through that tough field condition

More Time to Spray, Every Day

Time spent on maintenance is time away from the field. Patriot sprayers feature a one-stop service center that lets you perform all tendering functions from a single location. Connections are provided to make it easy to fill tanks from ground level, and an optional fill flow meter allows you to see exactly how much is going into the main tank. Large plumbing hoses, newly improved direct hose routings and minimal fittings and connections are standard, making tank fill time shorter, and service easier than ever before. Case IH Patriot sprayers are designed to get maintenance out of the way quickly and efficiently... and get you back in the field ASAP.

An open architecture design allows easy access to components under the sprayer frame
Ladders, walkways and platforms make it easy to access service points higher up
Infield service is no problem

Easy-access eductor
- The easy-access stainless steel eductor is designed for simple, efficient operation.
- The chemical eductor lowers to waist level, then stores conveniently out of the way.
Easy-open hoods
- Lightweight, easy-open hoods on the Patriot sprayer models give you unrestricted access to service items
- Allows for quicker checks or service and gets you back in the field sooner
- Enhances the machine's productivity
Easy-fueling
- The hood is fixed in location and has a dedicated opening for filling diesel fuel quickly
- Fuel tanks are sized to allow for a full day of spraying, up to 140 gallons.

How Wide is the Range of Boom Options? Pretty Wide.

Case IH offers choices of boom widths and options to fit any application each one built with the rugged and durable parallel-link design for years of solid service. Patriot sprayers' advanced boom and boom suspension design provide superior strength without excessive weight and a wide range of spray heights for various crops and conditions, while also maintaining boom position at all speeds. That means that even in high speed turns, the boom tips won't "dig" in.

AutoBoom XRT

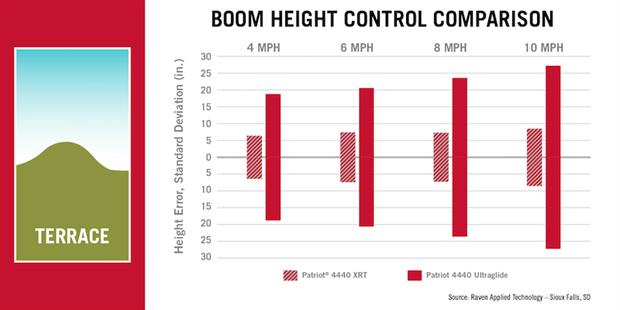

- AutoBoom XRT automatic boom height control uses a combination of chassis monitoring and radar sensors to detect changes in terrain and adjusts the booms accordingly for improved target height accuracy.
- Decreases operator fatigue and wear and tear on the machine while increasing the accuracy and coverage of the applications.
- Configure with additional radar sensors to maintain a level spray platform and maximize boom life.
AutoFold Plus
- AutoFold Plus fold/unfold feature is part of the Case IH 120-, 132- and 135-ft. foot spray boom packages.
- With the touch of a switch, the inner, mid- and outer boom sections are completely unfolded and the center section height is lowered to its most recent setting — in about 30 seconds.
- The return-to-height feature eliminates guesswork about boom height when moving from field to field.

AccuBoom
- AccuBoom automatic boom section control automatically turns off boom sections when the sprayer enters an area that has already been sprayed and then turns the sections back on when leaving the applied area
- AccuBoom is part of every Patriot sprayer, working in conjunction with the Case IH Viper+ or AFS Pro 700 rate controller and a GPS system
Parallel-Link Design
- Patriot sprayer booms offer greater durability and longer service life.
- The parallel-link design delivers the versatility operators need with a 60-inch range of motion for the 3240/3340/4440 models and a 63-inch range of motion for 2250, for spraying preplant, post-tassel or anytime in between.

AIM AccuPlacer™
- Easily convert your self-propelled sprayer into side-dress fertilizer machine to ensure your crops get nitrogen when they need it most.
- Lightweight, durable aluminum drops let you outfit full booms with less structural stress.
- Flexible rubber hose at the bottom of each stick trails between rows, placing nutrients within 3 inches of the crop and in soft soil to be absorbed quickly.

Precision Farming at Your Fingertips

AFS Pro 700
- The optional AFS Pro 700 color display puts total control at your fingertips.
- Monitor and control both guidance functions and application rate
- Track ground speed, acres covered and other variables
- Integrates seamlessly with AFS software to store, view and manage precision farming data, helping you adjust for in-field variability and improve yield potential.
- Offers AFS AccuTurn automated headland-turning technology for Patriot series sprayers.
Case IH Viper 4+
- The optional Case IH Viper 4+ controller is a touch-screen interface that displays boom status, application rate and pressure readings.
- Can function as both a stand-alone rate controller and as an integral part of guidance or mapping systems
- Features a highly visible 12.1-inch screen.
- Offers RS1 autoguidance and steering system for Patriot series sprayers.

Current Models

Patriot® 2250
The Patriot 2250 has the highest clearance in its class. Featuring a 660 gallon mid-mount poly tank.
Patriot® 3240
Featuring an 800 gallon product tank, the Patriot 3240 delivers the right rate not only across the entire boom, but also the entire field.
Patriot® 3340
The Patriot 3340 is built to last. The 3340 offers boom width options from 60 to 120 ft and has a 1,000 gallon stainless steel product tank.

Patriot® 4440
With its 140 gallon fuel tank and either 1,200- or 1,600-gallon product tank, the Patriot 4440 keeps you in the field for a full day of spraying.

Brochures & Spec Sheets

Patriot Series Sprayers
Share Download
Patriot 2250 Sprayer Spec Sheet
Share Download
High-Efficiency Application Portfolio
Share Download

Learn More on the Case IH Blog

Case IH Blog
- From application tips to the latest spraying technology, subscribe to the Case IH Blog for timely sprayer topics that will help you make the most of every tankful.
  Read Now
Latest Posts
Time Your Corn Feedings Right, Stuff Your Bins This Fall

Efficient Application Starts With Calibration

Care for Your Nozzles; They’ll Care for Your Crops

Tech Tips: Get More From AIM Command FLEX

AIM AccuPlacer Lets You Side Dress With Your Sprayer

Genuine Case IH Parts & Service

Only genuine Case IH parts were made for your machine and designed for peak performance. Find everything you need from filters, fluids, shop products and safety equipment, to owners manuals, parts diagrams, paint, and batteries, at the Case IH parts store.

Visit the Case IH Parts Store Download or Order Operators Manuals

Next Steps

Build & Price

Configure and price your new Patriot Series Sprayers. Customize it the way you want.
Start Now
Compare Specs

Compare our sprayer specs to other manufacturers.
Compare Now
Case IH Blog

Keep on top of the latest product information, farm show reports, and industry news.
Read Now

{label}

https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V</a>"><a href="https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V">https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V</a></a>"><a href="<a href="https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V">https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V</a>"><a href="https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V">https://www.googletagmanager.com/ns.html?id=GTM-T9FN7V</a></a></a>" height="0" width="0" style="display:none;visibility:hidden">

https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K</a>"><a href="https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K">https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K</a></a>"><a href="<a href="https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K">https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K</a>"><a href="https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K">https://www.googletagmanager.com/ns.html?id=GTM-5WM4L9K</a></a></a>" height="0" width="0" style="display:none;visibility:hidden">

175 - 335 HP

Patriot Series Sprayers

Horsepower

175 – 335 HP

FPT Engine

6.7 / 8.7 L

Tank Size

660 – 1,600 gal.

Emissions Standard

Tier 4 B/Final

PATRIOT FAMILY

New for 2020: Wider, lighter boom options for Patriot® 4440 sprayer

Make the Most of Every Plant's Potential

Application Quality

Timeliness

In-Field Performance

When It Comes to Chemical Delivery, Make Sure Your Equipment Delivers.

Spray when you have to

Long hours won't feel so long

Spray better

Maximize your uptime

Distinctive Appearance, Unmatched Performance

Superior suspension

Even weight distribution

Heavy-duty frame

Heavy-duty boom construction

Get Ultimate Spray Control with AIM Command FLEX®

How AIM Command FLEX works

Precise, flexible control

On-demand drift control

Compensate for turns

Instant on/off

Nozzle valve diagnostics

Simple, one-screen operation

Accurate spray mapping

Want greater precision?

Designed With You in Mind

Take absolute control

Have a seat

Enjoy full visibility

The Forces in Balance

Patriot 4440 sprayer with 8.7L engine

Patriot 3340, 3240 & 2250 proven 6.7L Engine

Hydrostatic drive system

More Time to Spray, Every Day

Easy-access eductor

Easy-open hoods

Easy-fueling

How Wide is the Range of Boom Options? Pretty Wide.

AutoBoom XRT

AutoFold Plus

AccuBoom

Parallel-Link Design

AIM AccuPlacer™

Precision Farming at Your Fingertips

AFS Pro 700

Case IH Viper 4+

Current Models

Brochures & Spec Sheets

Learn More on the Case IH Blog

Case IH Blog

Latest Posts

Genuine Case IH Parts & Service

Next Steps

Build & Price

Compare Specs

Case IH Blog

New for 2020: Wider, lighter boom options for Patriot^® 4440 sprayer

Get Ultimate Spray Control with AIM Command FLEX^®
